Customized Safety 1500V AC Ethernet Transformer SMD 16 PIN 100BASE Filter

Name: Customized Safety 1500V AC Ethernet Transformer SMD 16 PIN 100BASE Filter
Brand: DGKYD
Price: 1 USD

Quality Customized Safety 1500V AC Ethernet Transformer SMD 16 PIN 100BASE Filter for sale

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KMS-1102NL

Price : Please contact us to get the latest price.

Part Number : KMS-1102NL

Product Type : Transformer Modular

Core Quantity : 4 pairs

Lan Transformer Speed : 10/100/1000 BASE-TX

Brand : DGKYD/OEM/ODM

Transformer Style : Ethernet Transformer

PIN quantity : 16 PINS

Mounting Type : SMD

Contact Now

Customized Safety 1500V AC Lan Isolated Transformers SMD 16 PIN 100BASE Filter

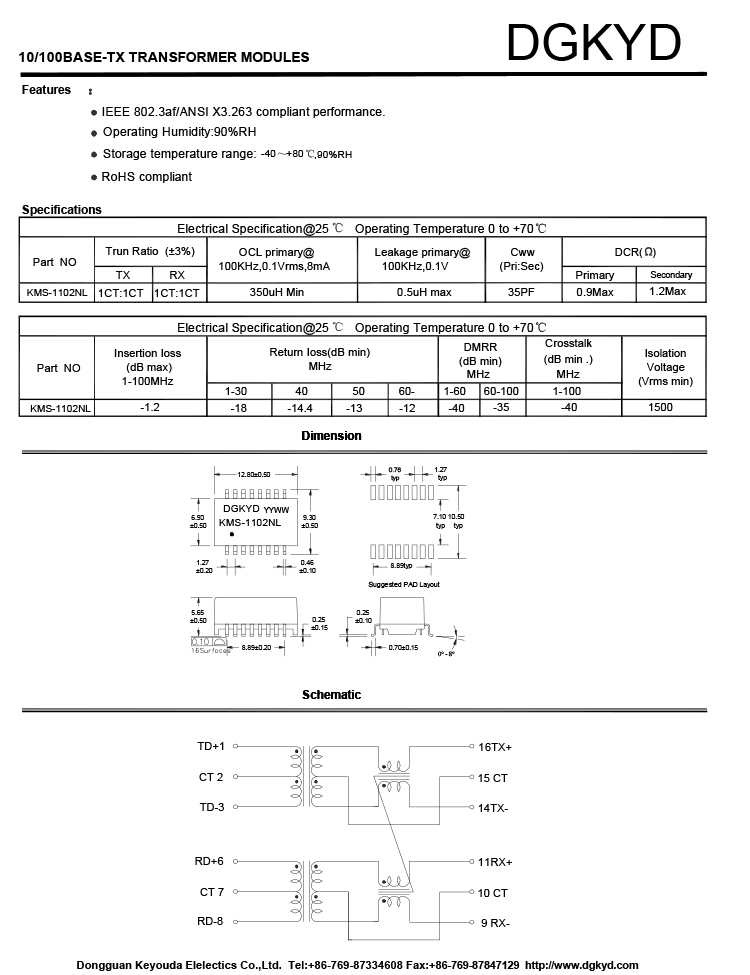

Specifications:

.Insertion Loss :1-100MHZ -1.0dBmax

.Rturn Loss : 1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk :1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35.0dBmin

.Hi-Pot:1500V AC 6S 1mA

.Turn Ratio :1CT:1CT±3％

.OCL:350uH＠100KHZ 100Mv 8mA DC

.Operating temperature rang :-40℃ to +85℃

Applications:

• Isolation transformer main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,

IP phone, internet set top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL

／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer

firstly ,100% test, 0 defect, short lead time are our best advantages

Customized Safety 1500V AC Ethernet Transformer SMD 16 PIN 100BASE Filter

Product Tags:

isolating transformer

isolating transformers

1500V AC Isolated Transformers
